Eastern Command Line - Likely Hill

Visited here twice recently, it is an interesting position on the Command Line. The Command Line continued to follow the L&N.E.R Marks Tey, Sudbury & Bury Branch from Lavenham to Bury St Edmunds. A machine dug anti-tank ditch enhanced the obstacle (and was presumably created by deepening an existing stream).

The layout seems a little odd to me in that some of the front line pillboxes are only the bullet proof CRE 1094 (1'6" thickness) - only one CRE 1113 (3'6" thickness) seems to have been built in the area and that has sadly been destroyed post war (Serial No C25 - original serial no given in 1940). Normally I would expect 3'6" pillboxes in the forward positions and 1'6" pillboxes to the rear - see website for details on the layout of the Command Line. One of the pillboxes would seem to be a CRE Colchester unique design - in the shape of a caltrop.

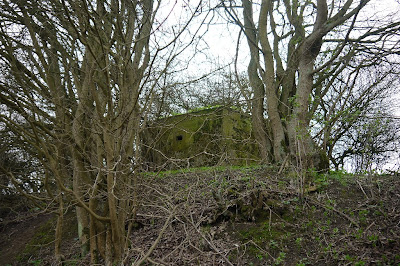

So going from south to north first up is pillbox serial No C23, a typical CRE 1094 with a central AA well. It would appear to be sited to command the anti-tank ditch so is unusual in that I would have expected it to be a CRE 1113

Next up is another CRE 1094, serial No C24

On Likely hill itself can be found the unique one-off design, a bullet proof 1'6" thick pillbox with three firing chambers arranged in a caltrop shape. It also has an offset central AA well, allowing an access gallery around the three chambers. The photos show the commanding position this pillbox enjoyed (although this could also be perceived as a weakness in that any position on a forward slope was obvious to the enemy). Third image down shows a plan of the pillbox while the forth image shows a crossing point (railway bridge and also a log bridge constructed for farmers) over the Command Line which could be observed from this position.

The forth pillbox I visited I almost missed. Parking in a layby I set off to visit the above pillbox and only on returning to the car noticed the pillbox above the layby! Again a typical CRE 1094 (serial No C27) with central AA well. Another CRE 1094 (serial No C28) is near by but was so over grown no useful image could be taken.

Final photo shows the stream that more or less followed the railway line and was presumably enhanced to form the anti-tank ditch.

Comments

Eastern Command Line - a lazy post

As the title suggests, just a lazy post today, a few pics of CRE Colchester design pillboxes in the Sudbury area to round of the thread on this May visit. Also one pic of concrete road block cylinders now being used as part of river bank defences. This is the first time I have come across this type of road block in Suffolk although I suspect it was probably used quite widely on this Stop Line, perhaps I will come across more examples / references in time. These pictures do show a timeless landscape - traditional floodplain meadows still used for grazing, with the Second World War clearly marking its presence. Lets just hope both the pillboxes and grazing meadows will be preserved.

RAF Hethel Defence Post

At RAF Station Hethel, a remarkable defence post still exists. Admittedly, RAF Hethel is in Norfolk and not Suffolk, but the records for this site do provide some interest in relation to the defence of airfields in Eastern Command. Work on Hethel began in 1941 and the station was opened late 1942 and was actually one of the RAF Stations handed over to the USAAF for the use of its bomber units. The defence post was constructed in accordance with a new policy adopted by Eastern Command. Previously, airfield defences had been built as a result of the Taylor Report and largely consisted of pillboxes and breastworks which were large and conspicuous and vulnerable to air attack. Experience at Crete had shown the need for small inconspicuous field works. The new defences were to now consist of small two man weapon-slits and small machine gun pits constructed in accordance with “Infantry Training, 1937” Supplement No.3 – “The design and lay-out of Field Defences, 1942”. Above...

Anti-tank ditch

December 31st Decided to visit the anti-tank ditch at Aldringham Walks this afternoon. It was constructed between late 1940 and early 1941 and ran from (north to south) Sizewell to the north of Thorpeness Mere. Some of its length is still visible today (see map and bottom photo)). The war diary of 9th Cameronians (15th Div) mentions the construction of the ditch in Margaret Wood (vicinity of No 12 Platoon, B Coy). The diary also mentions a pillbox being destroyed by the RE in No 12 platoons area, but no luck in finding any remains this time. The diary would also indicate the ditch was a combined obstacle with Z1 scaffolding. The top left photo shows the remains of a weapons pit/shell slit; six pieces of angle iron revetment still exist - one of the pieces is clearly visible in the photo. Perhaps this is part of No 12 platoons position. Many years ago when beating up the young woodland I found a Yorkshire billhook with the WO arrow dated 1946, so this area would appear to have ...
